Transparent LED Vision
Hole Punching PCB
Perforated PCB, up to 93% transparency

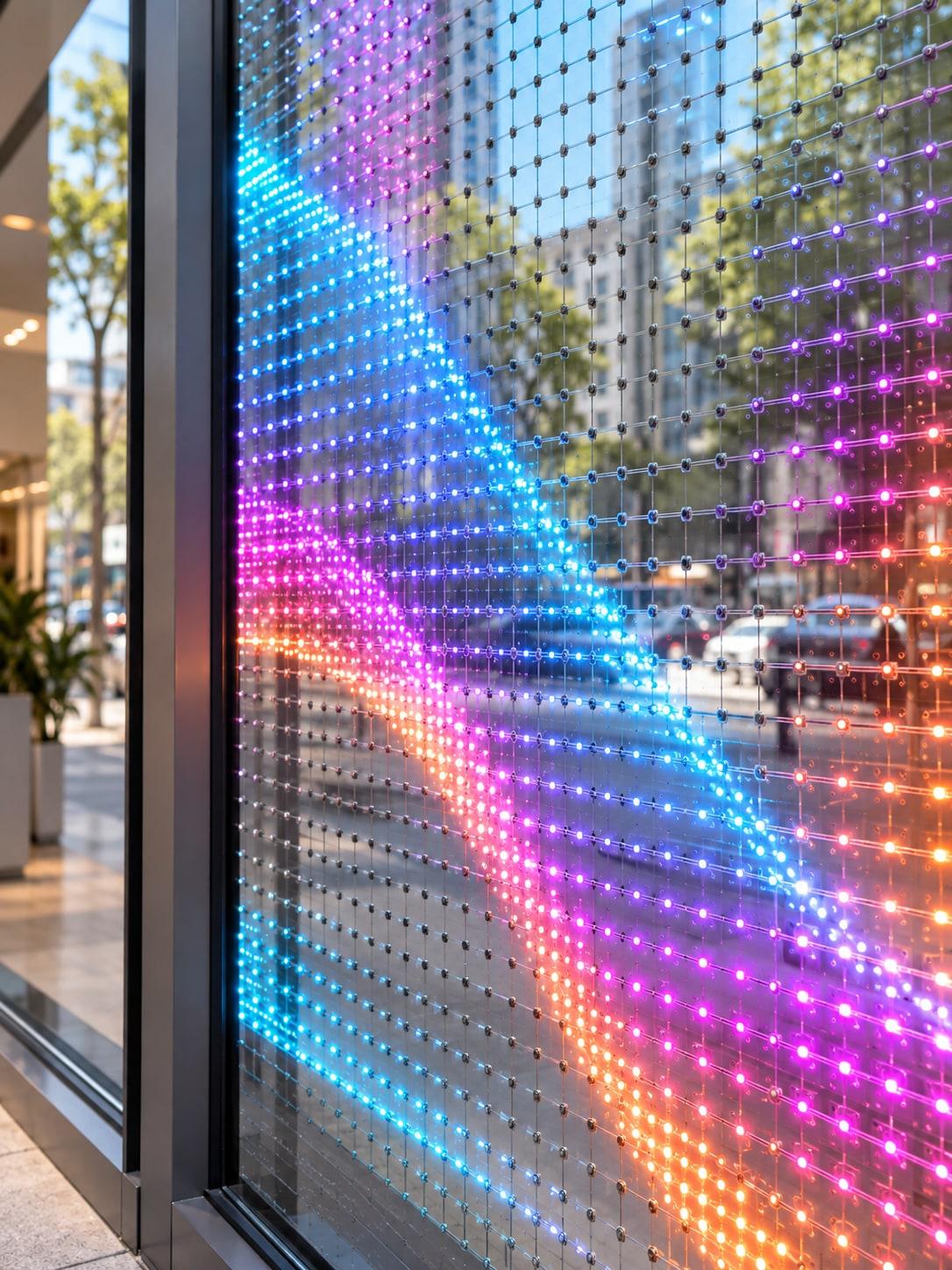

A transparent LED with perforated PCB substrate — 0.8 mm thin, about 1.5 kg/m², and even curved-surface capable.
Request a Quote
This product is quoted individually based on your installation environment.
Free survey & quote
Product warranty
Nationwide install
Transparency 70–93% (by pitch)Pixel pitch P3.508 / 3.91 / 5 / 6.25 / 8 / 10 / 16mmBrightness ≥ 2,000–5,000 cd/m² (by pitch)Thickness / weight 0.8 mm / approx. 1.5 kg/m²
Hole Punching PCBFEATURES
Highlights
01

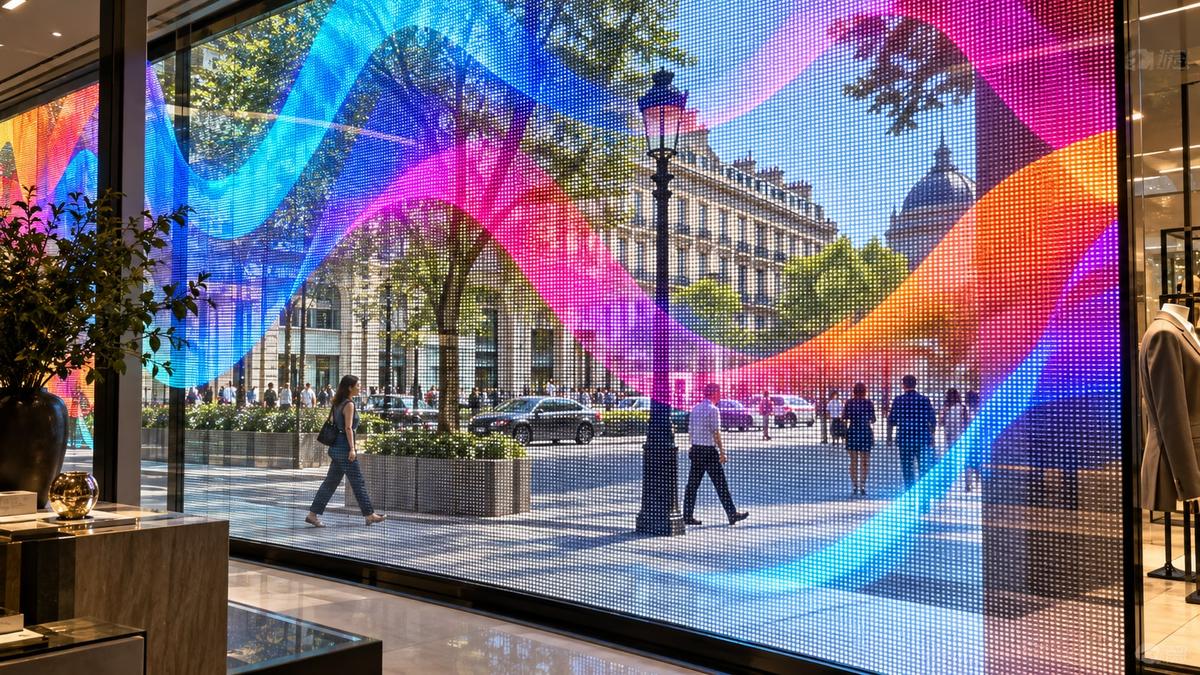

Blocks neither light nor sightlines.
The open PCB keeps natural light and sightlines intact while layering imagery at 5,000+ cd/m².
02
0.8 mm, 1.5 kg/m² — curves welcome.
Ultra-thin and light enough for existing glass and curved surfaces, expanding design freedom.
Key specifications
- Transparency
- 70–93% (by pitch)
- Pixel pitch
- P3.508 / 3.91 / 5 / 6.25 / 8 / 10 / 16mm
- Brightness
- ≥ 2,000–5,000 cd/m² (by pitch)
- Thickness / weight
- 0.8 mm / approx. 1.5 kg/m²
- Typical use cases
- Shop windows, malls, brand showrooms, glass surfaces
Detailed specifications
Excerpted from the product catalog- Ultra-thin, lightweight build — 0.8mm thick, 1.5kg/m²
- Hole-punched design blends into its surroundings; curved installs supported
- Transparency up to 93%
Considering Hole Punching PCB?
We'll propose the ideal configuration for your environment, size and budget.
